Industrial ratchet crimpers, mini self-adjusting tools, and heavy-duty cutters built to strict tolerances for global power utilities and electronics manufacturers.
In high-amperage electrical terminations, a hydraulic cable crimper does not simply squeeze a lug onto a wire; it achieves controlled solid-state diffusion through mechanical compaction.
Effective hydraulic crimping requires eliminating microscopic air pockets within stranded copper or aluminum bundles. Achieving a compaction ratio between 85% and 92% prevents ambient oxygen and corrosive sulfides from penetrating the core, stopping galvanic oxidation dead in its tracks.
SIBO's custom tooling is calibrated to crush the conductor barrel uniformly, converting stranded wire into a virtual solid conductor cross-section.
Our dies are CNC-machined from ultra-grade Cr12MoV cold-work die steel and 40Cr structural alloy, followed by multi-stage vacuum heat treatments yielding HRC 58-62 surface hardness.
Micro-polished hex and indent profiles ensure minimal lateral flash, preventing asymmetric stress concentrations that cause premature stress-corrosion cracking in high-vibration applications.
Operating pressures up to 700 bar (10,000 PSI) require aerospace-grade nitrided pistons and polyurethane micro-sealing rings. Integrated automatic relief valves bypass fluid once nominal tonnage is achieved, ensuring every operator—regardless of experience—applies repeatable, certified tonnage without over-stressing the tool frame.
| Conductor Type | Nominal Range (mm²) | Applied Force (Tons) | Target Compression Ratio | Tensile Pullout (IEC 61238-1) |
|---|---|---|---|---|
| Class 2 Stranded Copper | 16 – 70 mm² | 5.0 – 6.0 T | 88% ± 2% | > 2,200 N |
| Class 5 Flexible Fine Wire | 95 – 240 mm² | 8.0 – 12.0 T | 90% ± 1.5% | > 4,800 N |
| Sector-Shaped Solid Aluminum | 150 – 400 mm² | 12.0 – 16.0 T | 86% ± 2% | > 6,500 N |
| Heavy-Duty ACSR Overhead | 300 – 630 mm² | 16.0 – 25.0 T | 92% ± 1% | > 12,000 N |
From extreme sub-zero wind turbine nacelles to high-salinity offshore PV arrays, custom hydraulic cable crimpers solve distinct failure points across diverse industry domains.
PV strings run hundreds of hours of high DC amperage where loose or high-resistance joints generate electrical arcs. Our solar-specific custom hydraulic crimp systems and specialized hand ratchet solutions (e.g., SO-2546B Pro) compress multi-contact terminals on 4mm² to 16mm² solar cables to an absolute minimum contact resistance (<0.2 mΩ).
High-voltage battery packs, inverters, and onboard charger systems demand shielded, high-flexibility cable terminations capable of handling up to 800V DC and continuous 3G harmonic vibrations without mechanical relaxation.
Marine environments accelerate electrolytic corrosion at junction points. Custom hydraulic cable crimpers deliver deep, gas-tight indentation on tinned copper lugs, preventing brine ingress between strand interstices.
Located in Yueqing, Zhejiang—the low-voltage electrical capital of the world—SIBO combines localized industrial clustering with vertically integrated precision manufacturing.
High-precision modern machining facilities with ISO-standard shop-floor organization.
Tailored mold profiles manufactured for North American, European, and Japanese connector types.
High-speed five-axis machining centers, electrical discharge machining (EDM), and automated grinding cells.
Dedicated technical team focusing on hydraulic seals, metallurgy, and ergonomics.
Within a 15-kilometer radius of our Yueqing facilities lies a complete ecosystem of metallurgical foundries, precision fastener manufacturers, custom plastic molding suppliers, and heat-treatment services. This reduces tool prototyping cycles from months to mere days.
Every critical component undergoes optical coordinate measuring (CMM), Rockwell hardness verification, and multi-cycle load pressure tests. SIBO's integrated production ensures zero dependency on unvetted third-party workshops, preserving strict intellectual property protections for our international OEM clients.
Whether you require standard blister packs under your own retail brand, custom Oxford bag field kits, or laser-etched high-amperage hydraulic crimpers calibrated to unique imperial AWG lugs, our modular assembly line ensures swift changeovers and predictable delivery windows.
A multi-tiered competitive overview of international hardware procurement dynamics and standard harmonization.
Legacy European and North American tool brands command premium markups of 300% to 600%. While providing reputable performance, their closed ecosystems and high repair costs constrain electrical contractors and mid-tier panel builders seeking cost-effective scaling.
Leading Chinese factories have transitioned beyond low-cost imitation. By adopting high-purity forged alloy bodies, robotic CNC die fabrication, and computer-calibrated relief valves, Yueqing manufacturers deliver tools that perform at 95% Western performance metrics at a fraction of the total landed cost.
Global trade requires absolute interchangeability. SIBO manufactures die sets matching DIN 46235 heavy-duty lugs, NF C 20-130 French specifications, BS 7609 British utility mandates, and UL 486A-486B North American compression standards.
The roadmap toward digitalized calibration, electro-hydraulic efficiency, and metallurgical advancements.
Rapid low-pressure advance stage shifts automatically to high-pressure compression once jaw contacts the lug, halving actuation cycles.
Integration of lightweight 18V Li-Ion battery platforms driving micro-hydraulic gear pumps for one-handed operation in confined cable vaults.
Embedded pressure transducers recording peak tonnage, timestamp, and cycle curves per crimp, exported via Bluetooth for ISO auditing compliance.
Titanium-aluminum structural tool frames dropping hand-carried tool weight by 35% without forfeiting hydraulic burst pressure limits.
A dependable Chinese manufacturing partner must guarantee compliance, frictionless logistics, and real-time technical consultation.
Our manufacturing and processing lines maintain full CE compliance, RoHS certification on all handle resins and protective coatings, and strict adherence to ISO 9001:2015 quality frameworks.
Direct communication with certified tool designers—not merely commission agents. We offer CAD/STEP layout reviews within 24 hours, custom die sample proofs in 7 business days, and real-time troubleshooting via video link.
High-density polyethylene (HDPE) cases, anti-corrosion VCI barrier bags, and vibration-isolated export cartons ensure every hydraulic tool arrives with calibrated fluid pressures ready for immediate commissioning.
Detailed technical answers for professional tool importers, distributors, and utility procurement managers.

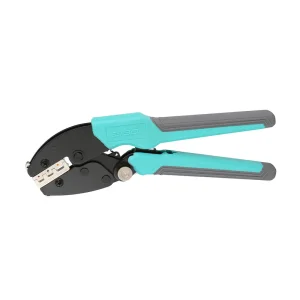

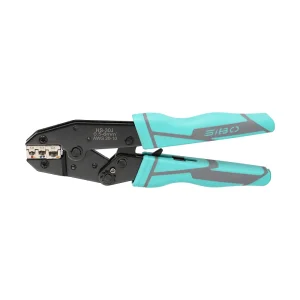

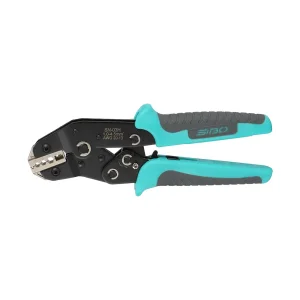

Explore our specialized range of hexagonal ferrule pliers, open-barrel ratchets, and heavy ratchet cable cutters manufactured for extreme reliability.
