Product Overview

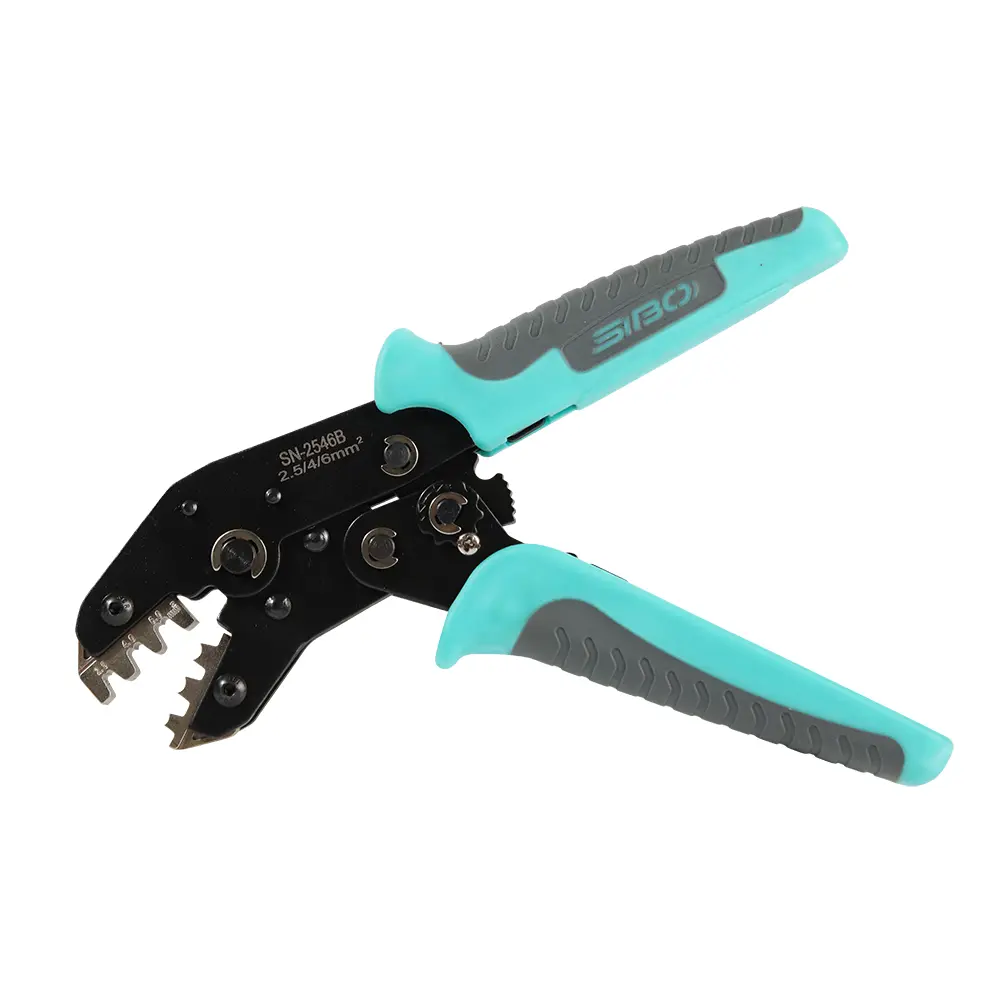

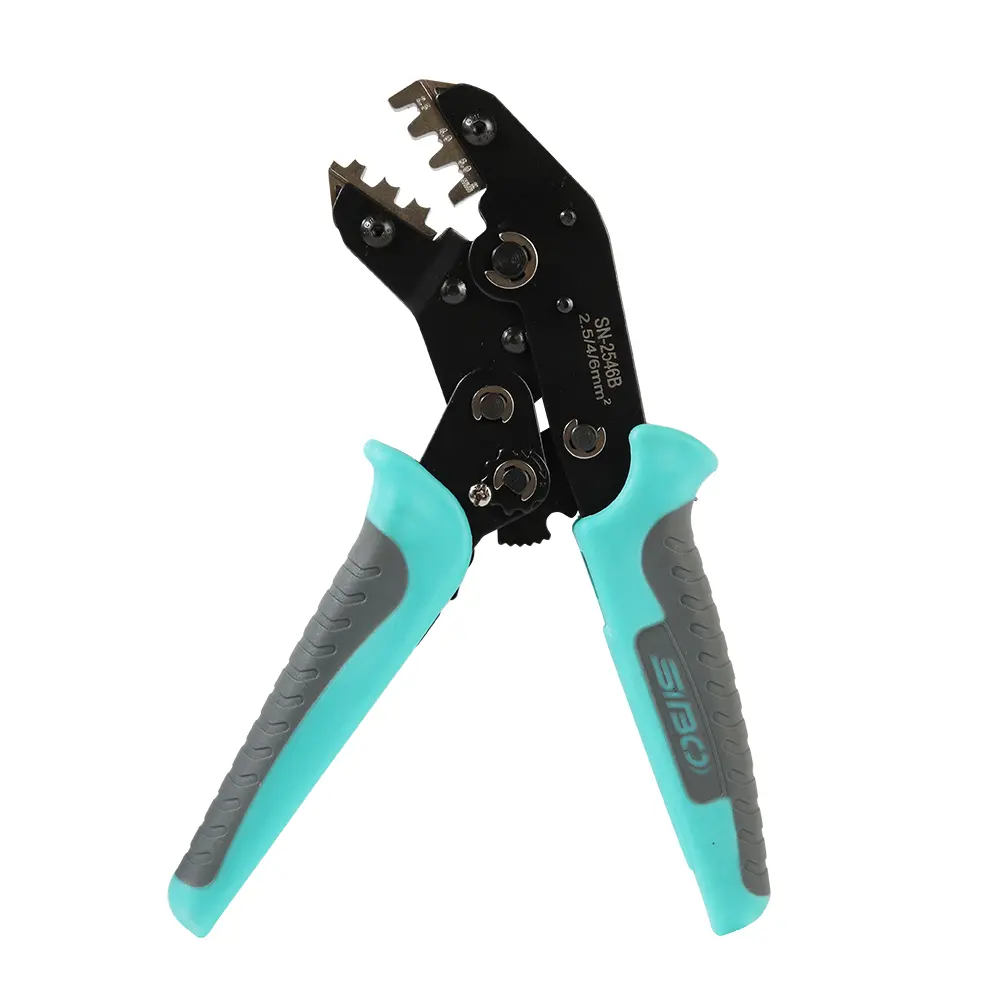

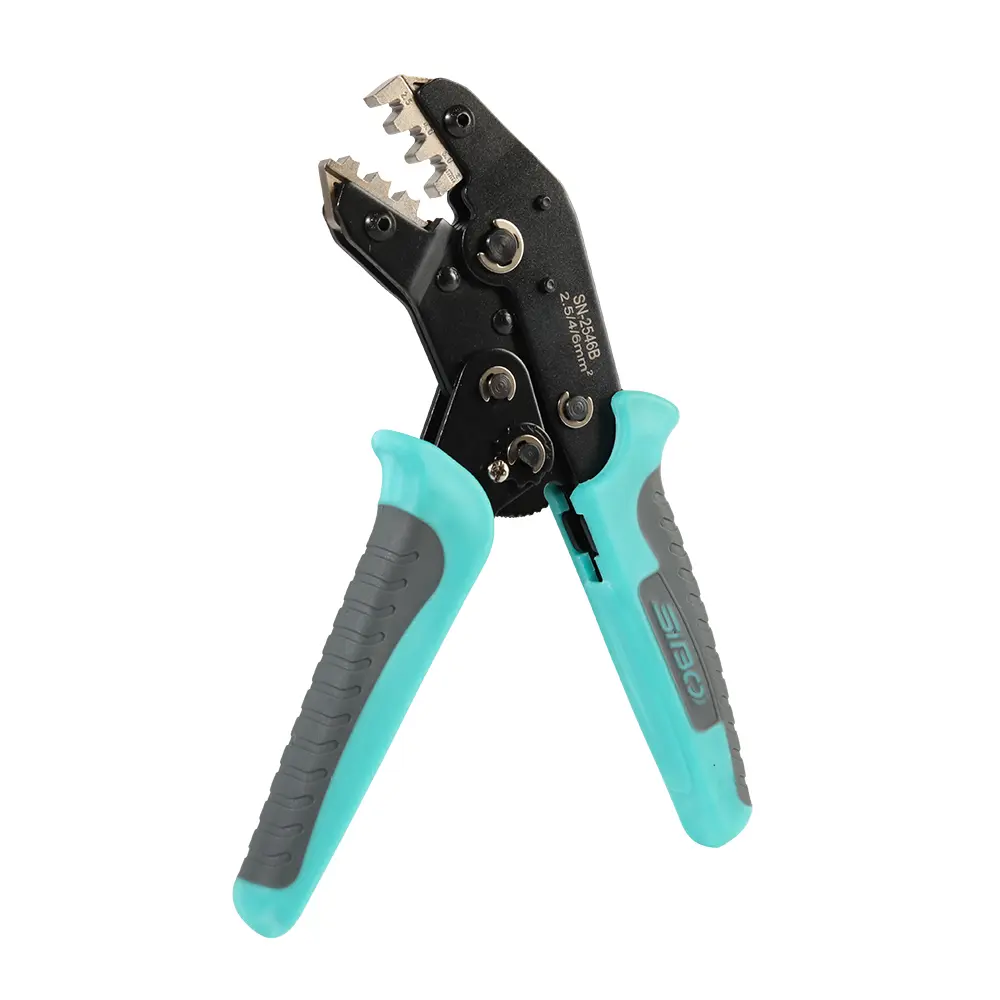

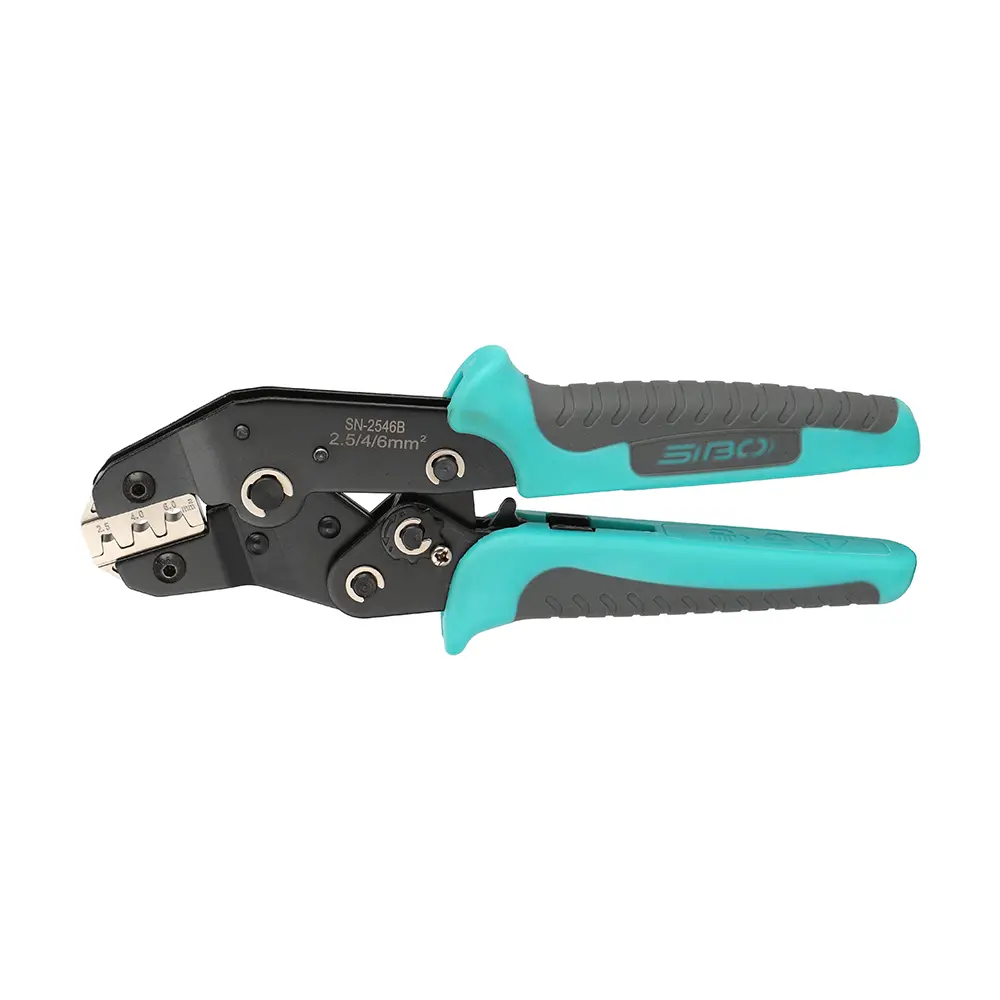

This crimping tool is a versatile and robust solution designed for photovoltaic and electrical applications. It accommodates a wide range of cables (2.5-6mm²) and connector types, including MC4 and PV. Its core strength lies in delivering a reliable and labor-saving crimp, achieved through a precision-engineered ratchet mechanism that ensures stable connections and prevents rebound. Built for durability and user comfort, it is constructed from high-strength, wear-resistant materials. The ergonomic handle, featuring a dual-material TPE and PP design, offers a comfortable, anti-slip grip for prolonged use. For precise control, a pressure regulating valve allows for easy pressure adjustment. Additionally, a quick-release trigger facilitates safe and convenient troubleshooting, enabling users to swiftly clear jams or errors without disassembly, thereby enhancing overall efficiency and safety.
Product Features
Widely applicable
Suitable for a variety of cables and terminals in the range of 2.5-6mm² (AWG 13-10), and compatible with various photovoltaic connector types such as MC4 and PV.
Reliable connection
Precision design ensures accurate and reliable crimping every time, providing stable electrical connection and reducing the risk of failure.
Durable and comfortable
Made of high-strength, wear-resistant and corrosion-resistant materials, it has a long service life; the ergonomic handle design is comfortable to operate and suitable for long-term use.
Labor-saving and stable (core function)
The ratchet mechanism can effectively maintain pressure and prevent rebound, making the crimping process more stable. The operation is more labor-saving and reduces the labor intensity of the user.
Comfortable and Anti-slip (Ergonomics)
The handle is made of a dual-material design of TPE (soft rubber) + PP (hard rubber). It provides a comfortable grip and has an anti-slip function, ensuring safe and stable operation.
Adjustable Pressure (Precise Control)
A pressure regulating valve allows users to customize the pressure. Rotate the knob in the "+" direction to increase pressure. Rotate the knob in the "-" direction to decrease pressure.
Quick troubleshooting
Equipped with a release trigger/trigger button, when a crimping error or jam occurs, you can easily and quickly remove the wrong crimping head or internal obstacles without laborious disassembly.
Frequently Asked Questions
What cable sizes is this crimping tool compatible with?
This crimping tool is compatible with a wide range of cables from 2.5 to 6mm² (AWG 13-10).
Which types of connectors can be used with this tool?
It is compatible with various photovoltaic connector types, including MC4 and PV connectors.
How does the ratchet mechanism improve the crimping process?
The ratchet mechanism maintains consistent pressure and prevents rebound during use. This ensures a stable connection and makes the operation more labor-saving, reducing hand fatigue.
How do I adjust the crimping pressure?
You can easily customize the pressure using the built-in pressure regulating valve. Simply rotate the knob in the "+" direction to increase pressure, or in the "-" direction to decrease it.
What should I do if the tool gets jammed during operation?
The tool is equipped with a quick-release trigger. If a crimping error or jam occurs, you can activate the release trigger to safely remove obstacles or the incorrect crimping head without disassembling the tool.
What materials are used in the handle design?
The handle features an ergonomic dual-material design, combining TPE (soft rubber) for comfort and PP (hard rubber) for structural strength, providing an anti-slip grip for safe operation.
